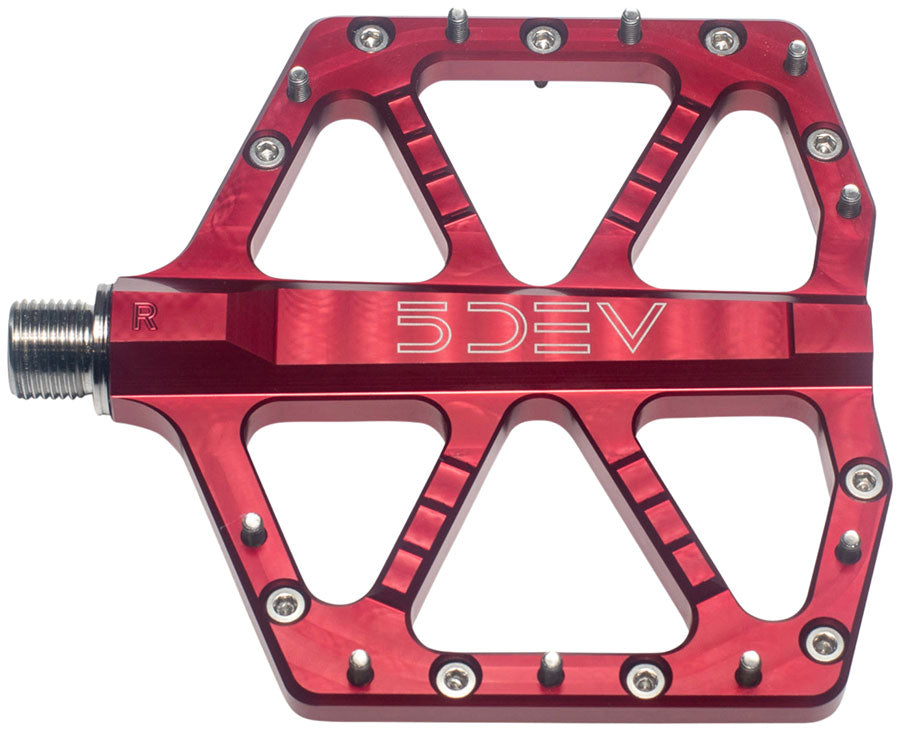

5DEV Jumpline Pedals - Red

Jumpline pedals are the evolution of original All Around and Trail Enduro pedals machined from 6061-T6 aluminum on a robotically loaded 5-axis Brother CNC in San Diego. The platform features taller sharper and more widely spaced traction teeth along the diagonal support ribs for a more confident connection to your shoes. The proven inboard bushing and quad-bearing system remained while upgrading the preload design to a nyloc nut for increased strength and long-term reliability. The result is a pedal built to withstand years of smashing rocks clipping roots and everything else the trail throws your way.

6061-T6 CNC Aluminum body

Platform dimensions: 106 x 110mm

300-series stainless steel pins 10 Per Side. M3 x 8mm

17-4 Stainless Steel Axle

Color	Red
Pedal Type	Platform
Weight	372
Pedal Spindle	9/16"
Pedal Body Material	Aluminum
Spindle Material	17-4 Stainless Steel
Defined Color	Red
