2021+ Fox Float 38 NA2 Air Shaft Assembly - Take Off - The Lost Co. - Fox Racing Shox - 820-02-569-KIT-TAKE - 170mm -

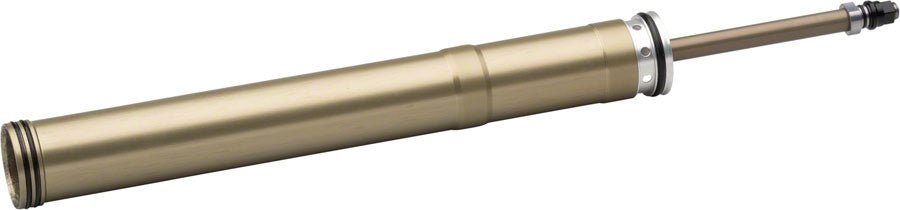

2021+ Fox Float 38 NA2 Air Shaft Assembly - Take Off

£106.00
£57.00
Quantity must be 1 or more
Sold Out - Notify Me When Available
820-02-569-KIT-TAKE
Ships within USA only

Pickup Not Available in our Bellingham, WA shop Store Info

  • The Lost Co

    Pickup Not Available in our Bellingham, WA shop

    2106 Pacific Street
    Ste 102
    Bellingham WA 98229
    United States

    +1 (360) 306-8827

Take Off: These air shafts were removed from brand new Fox 38 forks that we travel changed for other cusomers. These have never been used, they were only installed in a brand new fork, removed and then placed into a plastic bag.

If you're looking to change the travel either up or down in your 2021 Fox Float 38 fork and save some money, then just snag a take-off air shaft and swap it out in your fork!

Fox Air Shafts come with brand new seals pre-installed.

  • Sold as-is with no manufacturer warranty
MPN:820-02-569-KIT-TAKE
//
UPC:
Liquid error (snippets/product-form.liquid line 26): include usage is not allowed in this context .

FAQ

What is the difference between a new shaft and "take-off" shaft?


Fox only offers their forks in a very limited selection of travel options. We offer free custom travel changes for customers who purchase their Fox forks from us which results in us having many leftover air shafts removed from brand new Fox forks. These forks and air shafts have never been used and they are removed from a brand new fork which are immediately placed in a plastic bag.

What is included with this air shaft?


The 2021+ Fox Float 38 NA2 Air Shaft Assembly Take-Offs includes the entire air shaft assembly (with all accompanying seals pre-installed) and a foot nut. The crush washer is not included. You can purchase a Fox Spring Side Crush Washer separately. The air shaft is available in multiple travel options for you to choose from.

Which models of Fox 38 does the air shaft fit in?


This Fox 38 Air Shaft Assembly fits all models of Fox 38. It is also compatible with the Fox 38 E-Tuned models.

How do I properly install and lubricate this air shaft in my Fox 38?


Below is the installation procedure we follow in our shop:

  • REMOVE THE AIR, remove the lower legs, and remove the current air spring.
  • Clean the inside of the air-side stanchion and lower legs like you normally would during a fork service.
  • The new air shaft's seals are not lubricated from the factory, and there will be enough stiction in the seals to stop you from compressing the new air shaft by hand.
  • Hold the air shaft upright by the upper tube, pour 3cc's of Fox 20wt Gold Oil into the upper tube to lubricate the top of the inner piston, lightly apply the same oil to the lower seal where the lower shaft inserts into the upper tube, and then smack the bottom of the air shaft on a soft rag on top of a firm bench top to break the initial stiction.
  • Next, pull the lower shaft away from the upper tube and hold it fully extended for about 10 seconds so the oil can drizzle down into the piston. Then, slowly move the shaft inward and outward between being 100% extended and 90% extended to allow both chambers to equalize. You may hear air hissing during this equalization process which is normal.
  • Lightly lubricate the outer portion of the upper tube's upper and lower seals with Fox 20wt Gold Oil. This is to ensure smooth insertion into the fork stanchion.
  • Depress the air valve (or remove the upper air cap) and carefully insert the air shaft assembly into the stanchion.
  • You may feel a tight spot around 80% of the insertion. If so, back out the shaft to around 50% insertion, and then push quickly and firmly in one swift motion to fully insert the shaft.
  • Install the new snap ring and reassemble the fork as you usually would during a normal fork service.

Will I need a new damper that matches the same length of travel as the new air shaft?


  • You do not need to pay any attention to your damper because the damper will just extend to accomodate for the increased travel, or compress to accomodate for the decreased travel. Yes, you can even decrease your 180mm Fox 38 all the way down to 150mm and your damper will simply compress to the new travel without any negative effects. Any Fox 38 GRIP or GRIP2 damper has a maximum travel of 180mm, and since 180mm is the longest air shaft they make for this chassis, there is no way to run into compatibility issues with the damper or air shaft lengths.

What supplies and accessories do I need to install the new air shaft in a Fox 38?


Besides the air shaft, you would need all of the supplies required to do a lower leg service. You would need the following parts to do that yourself:

  1. Fox 20wt Gold Oil for the air-side lower leg bath,
  2. Fox 5wt PTFE Oil for the damper-side lower leg bath
  3. Slickoleum to lubricate the dust wipers
  4. Syringe to get the oil in the fork
  5. Fox Spring-Side Crush Washer and Fox Damper-Side Crush Washer to reinstall the lower legs.

We also recommend replacing your lower leg dust wiper seals while the fork is taken apart if the current dust wipers have about 75 hours or more of riding on them:
  1. Fox 38 Dust Wiper Kit (includes a crush washer for damper side, so you wouldn't need to order one separately)
  2. Fox 38mm Seal Driver is required to install the new dust wipers
